Sea Cat (SS-399) (AGSS-399)

Radio Call Sign: November - Kilo - Oscar - Victor

Balao Class Submarine: Laid down, 30 October 1943, at Portsmouth Navy Yard, Kittery, ME.; Launched, 21 February 1944; Commissioned USS Sea Cat (SS-399), 16 May 1944; Redesignated Auxiliary Submarine (AGSS-399), 30 September 1949; Redesignated (SS-399), 9 January 1952; Snorkel conversion at Philadelphia Naval Shipyard, 15 January 1952 to 26 June 1952; Redesignated an Auxiliary Submarine on 29 June 1968; Decommissioned and struck from the Naval Register, 2 December 1968; Final Disposition, sold for scrapping, 18 May 1973. Sea Cat earned three battle stars for her World War II service.
Partial data submitted by Yves Hubert.

Specifications: Displacement, Surfaced 1,526 t., Submerged 2,391 t.; Length 311' 9"; Beam 27' 3"; Draft 15' 3"; Speed, Surfaced 20.25 kts, Submerged 8.75 kts; Cruising Range, 11,000 miles surfaced at 10 kts; Submerged Endurance, 48 hours at 2 kts; Operating Depth, 400 ft; Complement 6 Officers 60 Enlisted; Armament, ten 21" torpedo tubes, six forward, four aft, 24 torpedoes, one 5"/25 deck gun, one single 40mm gun mount, one single 20mm gun mount, two .50 cal. machine guns; Patrol Endurance 75 days; Propulsion, diesel-electric reduction gear, four Fairbanks-Morse diesel engines, 5,400hp, Fuel Capacity, 116,000 gal., four Elliot Motor Co. electric main motors with 2,740hp, two 126-cell main storage batteries, two propellers.
Click On Image
For Full Size Image
Size Image Description Source
Sea Cat 18k Commemorative launch day badge from Sea Cat's (SS-399) launching, at Portsmouth Navy Yard, Kittery, ME., 21 February 1944. Courtesy of James A Munroe in remembrance of his father Raymond L Munroe Sr. who worked at the yard during WW II and the Korean wars as a chauffeur.
Sea Cat 38k Commemorative post card issued on the occasion of Sea Cat's (SS-399) launching, at Portsmouth Navy Yard, Kittery, ME., 21 February 1944. Photo courtesy of Jack Treutle.
Sea Cat 874k Sea Cat (SS-399) underway during her trials off the New England coast on 10 August 1944. US National Archives photo # 80G-453342 from NARA, College Park, Maryland, courtesy of Sean Hert.
Sea Cat 55k WW II battleflag of the Sea Cat (SS-399). USN photo courtesy of ussubvetsofwwii.org.
Archerfish 95k Proteus (AS-19) with submarines of Submarine Squadron 20 alongside in Tokyo Bay, on VJ-Day, 2 September 1945. Names of the submarines present, their commanding officers and the commanding officers of SubRon20 and Proteus (AS-19) are printed at the bottom of the image: Archerfish (SS-311), Cavalla (SS-244), Gato (SS-212), Haddo (SS-255), Muskallunge (SS-262), Pilotfish (SS-386), Razorback (SS-394), Runner (SS-476), Segundo (SS-398), Sea Cat (SS-399), and Tigrone (SS-419). Courtesy of Captain Joseph F. Enright, USN(Retired), 1979. US Navy photo # NH 95019, from the collections of the US Naval Historical Center.
Subron 5 181k Subron 5 family photo fall/winter (1945)in Guam, from left to right, Segundo (SS-398), Sea Cat (SS-399), Blenny (SS-324), Blower (SS-325), Blueback (SS-326) & Charr (SS-328). Photo by Lt. Herb Hanson, courtesy of John Hummel.
Sea Cat 286k Amidhsips looking forward plan view of Sea Cat (SS-399) at Mare Island on 23 July 1946. She was in overhaul at the yard from 15 April to 27 July 1946. US Navy Photo # 2626-46, courtesy of Darryl L. Baker.
Sea Cat 361k The Sea Cat off Mare Island on 22 July 1946. U.S. Navy Photo # 2591-46, courtesy of Darryl L. Baker.
Sennet 96k Several boats docked pierside in 1948. From inboard to outboard:
Sennet (SS-408), Runner (SS-476), possibly the Cutlass (SS-478) inboard from the Sea Cat (SS-399).
Photo courtesy of John Hummel.
Sea Cat 36k Heavy gun batteries were of somewhat limited value because they lacked fire controls. The next step then, was to add a surface-ship type fire control system: an Mk 6 stable element, and an Mk 6 computer driving gun-order repeaters at the guns. The most striking change was internal: a gun plot was installed in the forward crew quarters. In the autumn 1949, it was decided to have a number of experimental changes made to the ship during her forthcoming overhaul, and she was redesignated AGSS-399 on 30 September. On 7 November, she arrived at the Philadelphia Naval Shipyard where the work was done. The modifications and repairs were completed on 11 March 1950. A picture of navsource explains what was done: installation of a surface-ship type fire control system: an Mk 6 stable element, and an Mk 6 computer driving gun-order repeaters at the guns. The most striking change was internal: a gun plot was installed in the forward crew quarters. Sea Cat (SS-399), shown here, was the prototype. She also had a pair of single 40 mm guns.
The cylindrical object on her foreback is a dome covering her new WFA "integrated" sonar, which (in theory) would replace both the older WCA & JT In fact, JT was retained because its long line array gave more precise bearings than the small array inside the radome.
Note too that the usual wartime SD air warning radar had been replaced by the big antenna of the late war SV, on the auxillary mast abaft the periscope shears and conning tower. Six other boats (SS-229, 340, 401, 406-8) were also converted to "gunboats".
The Sea Cat is shown here off Balboa, Canal Zone, on 9 March 1949.
Photo & text courtesy of U.S. Submarines Through 1945, An Illustrated Design History by Norman Friedman. Naval Institute Press.
Sea Cat 183k Port side view of the Sea Cat (SS-399), taken probably after her last overhaul after she left Philadelphia in June 1952; she operated from Key West for the remainder of her career, spending most of her time in the Caribbean, the Gulf of Mexico, and in waters off the southern coast of the United States. Text courtesy of DANFS.
US Navy photo # USN 445269.
399 221k Four photo Welcome Aboard PDF for the Sea Cat (SS-399), circa 1959. US Navy photo courtesy of Scott Koen & ussnewyork.com.
Sea Cat 64k 1960 watercolor by the artist Salvatore Indiviglia entitled "Loading Fish" aboard the Sea Cat (SS-399). Painting #17/ 88-161-UI.
Courtesy of the USNHC.
Sea Cat 1.9k Sea Cat (SS-399) underway on 15 April 1962. Photo No:MM00005523x from the Ida Woodward Baron Collection in the Florida Keys Public Library via flickr.com courtesy of Steven Gower.
Sea Cat 335k Sea Cat (SS-399) underway on 10 September 1963. Photo from the Ida Woodward Baron Collection in the Florida Keys Public Library via flickr.com courtesy of Steven Gower.
Chopper 249k Change of command at Subron 12 Key West Fla. in the 1960's aboard the Bushnell (AS-15). Barracuda (SST-3) upper right. Other boats there are Sea Cat (SS-399), Picuda (SS-382), Atule (SS-403), Sea Fox (SS-402), Threadfin (SS-410) & Chopper (SS-342). Photo courtesy of John Hummel.

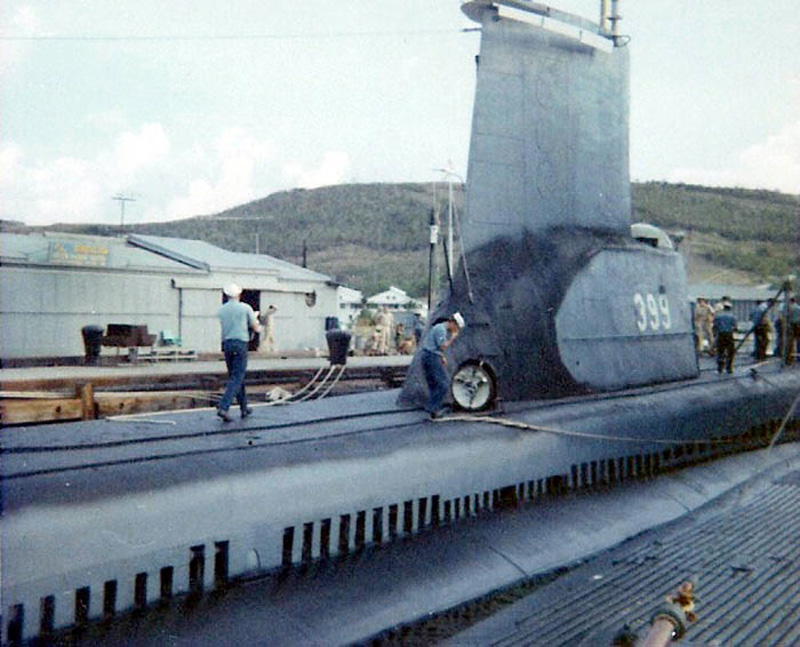

Sea Cat 193k Sea Cat (SS-399) at Guantanomo in 1968. Photo courtesy of John Hummel.
