NavSource Online: Amphibious Photo Archive

USS LSSL-74
ex
USS LCS(L)(3)-74 (1945 - 1949)


Awards, Citations and Campaign Ribbons


Precedence of awards is from top to bottom, left to right
Top Row - China Service Medal (extended) - American Campaign Medal
Bottom Row - Asiatic-Pacific Campaign Medal (1) - World War II Victory Medal - Navy Occupation Service Medal (with Asia clasp)



USS LSSL-74 was transferred to Japan and named Suisen

LCS(L)(3)-1 Class Landing Craft Support (Large)(Mark3):
  • Laid down, 23 December 1944, at Albina Engine and Machine Works Inc., Portland Oregon
  • Launched 30 January 1945
  • Commissioned USS LCS(L)(3)-74, 26 February 1945, LT. H. J. Wittman USNR in command
  • During World War II USS LCS(L)(3)-74 was assigned to the Asiatic-Pacific Theater:
    LCS(L)(3) Flotilla Five, CAPT. J. M. McIssac USN;
    LCS(L)(3) Group Fourteen, LCDR. K. E. Curley USN;
    LCS(L)(3) Division Twenty-Seven, and participated in the following campaign:

    Asiatic-Pacific Campaign
    Campaign and Dates
    Okinawa Gunto operation
    Assault and occupation of Okinawa Gunto, 18 to 30 June 1945

  • Following World War II USS LCS(L)(3)-74 was assigned to Occupation and China service in the Far East for the following periods:

    Navy Occupation Service Medal

    China Service Medal (extended)
    19 September to 4 December 19455 December 1945 to 8 April 1946
    10 to 15 April 1946

  • Decommissioned, date unknown
  • Redesignated Landing Ship Support Large USS LSSL-74, 28 February 1949
  • Transferred to Japan, 30 September 1953, named Suisen
  • Returned to US Naval custody 30 September 1958
  • Struck from the Naval Register, date unknown
  • USS LCS(L)(3)-74 earned one battle star for World War II service
  • Final Disposition, unknown
    Specifications:
    Displacement 250 t (lt), 387 t (fl)
    Length 158' o.a.
    Beam 23' 8"
    Draft
    5' 8" limiting and max draft
    loaded, 4' 9" fwd, 6' 6" aft
    Speed
    14.4 trial
    16.5k max at 650 shaft rpm
    14.5kts at 585 shaft rpm
    Armor 10-lb STS splinter shield to gun mounts, pilot house and conning tower
    Complement
    6 Officers
    65 Enlisted
    Endurance 5,500 miles at 12kts at 45" pitch (350 tons dspl.)
    Fuel/Stores
    635 Bbls Diesel (76 tons)
    10 tons fresh water
    6 tons lubrication oil
    8 tons provisions and stores at full load
    Fresh Water Capacity distill up to 1,000 gals. per day
    Armament
    bow gun, one twin 40mm gun mount
    two twin 40mm AA gun mounts
    four single 20mm AA gun mounts
    four .50 cal machine guns
    ten MK7 rocket launchers
    Propulsion
    2 quad packs of 4 General Motors 6051 series 71 Diesel engines per shaft, BHP 1,600
    single General Motors Main Reduction Gears
    2 Diesel-drive 60Kw 450V. A. C. Ships Service Generators
    twin variable pitch propellers

    Specifications Sources:
    Ships' Data U.S. Naval Vessels, Navships 250-012, April 15 1945
    Baker, A.D. III. Allied Landing Craft of World War II, Annapolis: United States Naval Institute Press, 1989. 47
    Lawley, George & Sons Corporation. Instructions for LCS(L)(3) Class
    Lawley, George & Sons Corporation. Original Plans of LCS(L)(3)

    Click On Image
    For Full Size Image
    Size Image Description Contributed
    By

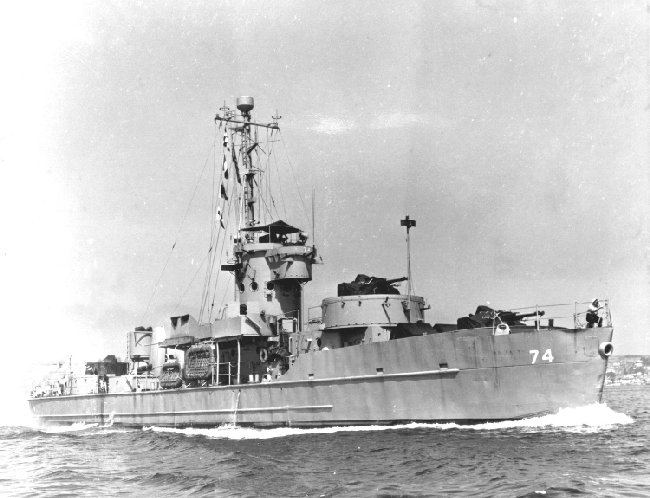

    LCS(L)-74 61k USS LCS(L)(3)-74 under way, date and location unknown.
    US Navy photo
    National Association of
    USS LCS(L) 1-130

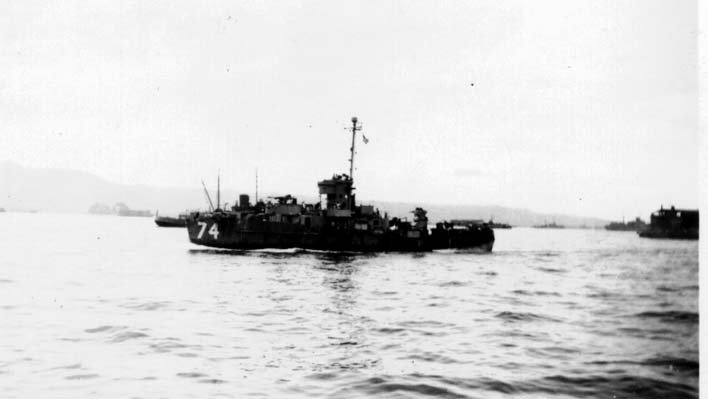

    LCS(L)-74 28k USS LCS(L)(3)-74 off Okinawa, date unknown Harvey Miller via Ted Mayhugh

    There is no history available for USS LCS(L)(3)-74 at NavSource
    Commanding Officers
    01LT. Wittman, H. J., USNR26 February 1945 - ?
    Courtesy Wolfgang Hechler and Ron Reeves

    Crew Contact And Reunion Information Web Sites
    U.S. Navy Memorial Foundation - Navy Log

    Other Crew Contact and Reunion Information
    National Association of USS LCS(L) 1-130
    Dennis Steenbergen, Secretary
    7345 W. Lakeside Drive, Littleton, CO, 80125
    Phone 303-470-1187
    E-mail Dennis Steenbergen
    Additional Web Sites of Interest
    National Association of USS LCS(L) 1-130

    Additional Resources
    Rielly, Robin L. Mighty Midgets at War: The Saga of the LCS(L) Ships from Iwo Jima to Vietnam. Central Point, Oregon: Hellgate Press, 2000. (ISBN 1-55571-522-2)
