USS Greenbriar River (LSMR-507)
ex
USS LSM(R)-507 (1945 - 1955)


Awards, Citations and Campaign Ribbons

Precedence of awards is from left to right
American Campaign Medal - Asiatic-Pacific Campaign Medal - World War II Victory Medal


LSM(R) 501 Class Landing Ship Medium (Rocket):
  • Laid down, 31 March 1945, at Brown Ship Building Co, Houston, TX.
  • Launched, 28 April 1945
  • Commissioned USS LSMR-507, 22 June 1945, LT Alvin G. Walser, USNR in command
  • During World War II USS LSM(R)-507 was assigned to the Asiatic-Pacific Theater:
    LSM(R) Flotilla Eighteen, CAPT. C. F. Macklin USN
    LSM(R) Group Forty-Three
    LSM(R) Division One Hundred Six
  • Decommissioned, 5 February 1947, at San Diego, CA.
  • Laid up in the Pacific Reserve Fleet, San Diego Group
  • Named USS Greenbrier River (LSM(R)-507), 1 October 1955
  • Struck from the Naval Register, 1 October 1958
  • Final Disposition, sold in 1959, to American Shipping Co., converted to a barge, scrapped between 1980 and 1991
    LSM(R) Specifications:
    Displacement 758 t.(light), 993 t. (attack) 1,175 t. (fully loaded)
    Length 206' 3"
    Beam 34' 6"
    Draft light, 5' 4" (mean), attack 6' 9" (mean), fully loaded 7' 9" (mean)
    Speed 13 kts.
    Complement 6 officers, 137 enlisted
    Armament
    one single 5"/38 dual purpose gun mount
    two twin 40mm AA gun mounts
    four twin 20mm AA gun mounts
    ten twin continuous loading 5" SS rocket launchers
    four 4.2" mortars
    Armor 10-lb. STS on conning station, pilot-house, radio room, radar plot, and rocket control, 10-lb. ASPP around 40 and 20mm gun mounts and directors
    Endurance 3,000 miles @ 13kts
    Propulsion
    two General Motors 16-287A (non-reversing with airflex clutch) Diesel engines, direct drive with 1,440 BHP each @ 720rpm
    Ship's Service Generators
    four Diesel-drive 100Kw 450V A.C.
    two Diesel-drive 20Kw 120V D.C.
    twin screws 2,800 shp

    Click On Image
    For Full Size Image
    Size Image Description Contributed
    By
    LSMR 507 78k USS LSM(R)-507 moored pierside at Galveston, TX., 27 October 1946 for Navy Week. USS LSM / LSMR Association

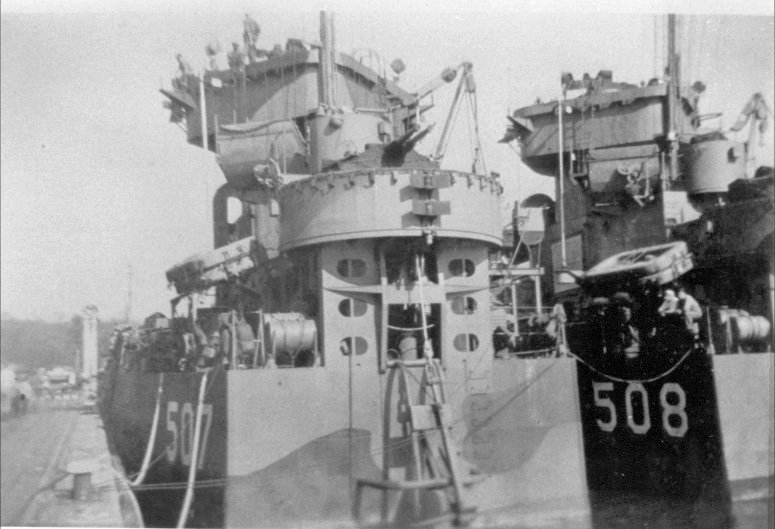

    LSMR 507/508 71k USS LSM(R)-507 and USS LSM(R)-508 moored together in the Panama Canal, 9 November 1946. USS LSM / LSMR Association
    LSMR 507/508 291k USS LSM(R)-507 under way, date and location unknown. Ralph Lichtenberger AM3 USN for his father Ralph K. Lichtenberger RM3/c USS LSM(R)-510
