NavSource Online: Amphibious Photo Archive

USS LSM-489


Awards, Citations and Campaign Ribbons


Precedence of awards is from top to bottom, left to right
Top Row - China Service Medal (extended) - American Campaign Medal
Bottom Row - Asiatic-Pacific Campaign Medal - World War II Victory Medal - Navy Occupation Service Medal (with Asia clasp)



USS LSM-489 was transferred to the Republic of China, seized by the People's Republic of China
LSM-1 Class Landing Ship Medium:
  • Laid down (date unknown) at Brown Shipbuilding Co., Houston TX.
  • Launched (date unknown)
  • Commissioned USS LSM-489, 27 April 1945, LTjg. Sydney A. Smity Jr. USNR in command
  • During World War II USS LSM-489 was assigned to the Asiatic-Pacific Theater:
    LSM Flotilla Sixteen;
    LSM Group Forty-Seven;
    LSM Division Ninety-Five;
  • Following World War II USS LSM-489 was assigned to Occupation and China service in the Far East for the following periods:

    Navy Occupation Service Medal

    China Service Medal (extended)
    14 to 27 September 194528 September 1945 to 2 May 1946
     21 November 1946 to 4 January 1947

  • Decommissioned, 2 May 1947, and transferred to the Republic of China the same day
  • Struck from the Naval Register (date unknown)
  • Final Disposition, seized, October 1949, by People's Republic of China forces, fate unknown
    Specifications:
    Displacement 520 t.(light), 743 t. (landing) 1,095 t.(fully loaded)
    Length 203' 6" (ovl)
    Beam 34' 6"
    Draft
    light, 3' 6" forward, 7' 8" aft
    fully loaded, 6' 4" forward, 8' 3" aft
    Speed 13.2 kts. (max.), (928 tons displacement)
    Complement
    5 officers
    54 enlisted
    Armament
    one twin bow mounted 40mm gun
    four single 20mm gun mounts
    Vehicle/Boat Capacity 5 medium or 3 heavy tanks, or 6 LVT's, or 9 DUKW's
    Fuel Capacity
    Diesel 1,225 Bbls
    Troop Accommodations
    2 officers
    46 enlisted
    Armor 10-lb. STS splinter shield to gun mounts, pilot house and conning station
    Endurance 4,900 miles @ 12kts.(928 tons displacement)
    Propulsion
    two General Motors (model GM 16-278A, reversible with hydraulic clutch) Diesel engines, direct drive with 1,440 BHP each @ 720rpm
    Ship's Service Generators
    two Diesel-drive 100Kw 450V A.C.
    one Diesel-drive 20Kw 120V D.C.
    twin propellers, 2,800shp

    Click On Image
    For Full Size Image
    Size Image Description Contributed
    By
    LSM-489 43k USS LSM-489 USS LSM-179 and LCT-1226 moored pierside in China, date and location unknown. USS LSM / LSMR Association

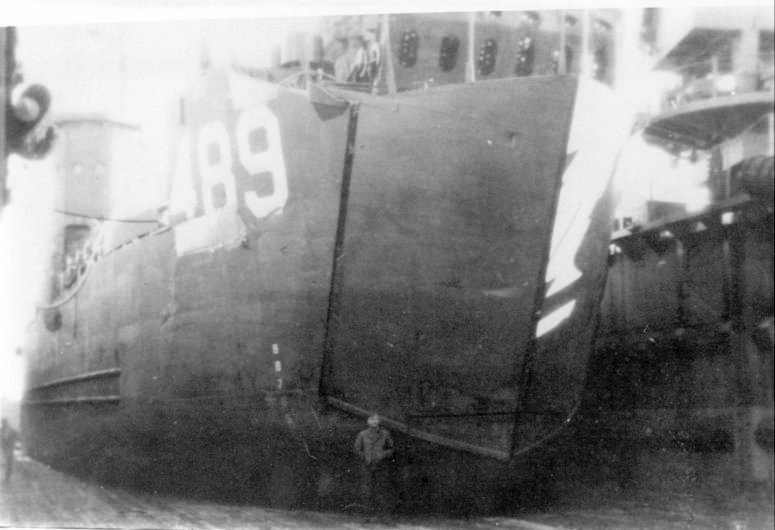

    LSM-489 57k USS LSM-489 in dry dock, date and location unknown. USS LSM / LSMR Association

    The history extract for USS LSM-489 is from LSM-LSMR Amphibious Forces, Vol. II. Paducah, Kentucky: Turner Publishing Company, © 1997. (ISBN 1-56311-389-9).
    Commanding Officers
    01LTjg. Smity Jr., Sydney A., USNR27 April 1945 - ?

    Crew Contact And Reunion Information
    U.S. Navy Memorial Foundation - Navy Log
    USS LSM-LSMR Association
