NavSource Online: Amphibious Photo Archive

LST-750

Awards, Citations and Campaign Ribbons


Precedence of awards is from top to bottom, left to right
Top Row - Combat Action Ribbon (28DEC44) - American Campaign Medal
Bottom Row - Asiatic-Pacific Campaign Medal (1) - World War II Victory Medal - Philippine Liberation Medal
LST-542 Class Tank Landing Ship:
  • Laid down, 7 April 1944, at Dravo Corp., Neville Island, Pittsburgh, PA.
  • Launched, 30 May 1944
  • Commissioned USS LST-750, 29 June 1944, LT. Ralph W. Long, USNR, in command
  • During World War II LST-750 was assigned to the Asiatic-Pacific Theater and participated in the:
  • Final Disposition, lost as a result of Japanese aerial attack off Leyte, 28 December 1944
  • Struck from the Naval Register, 19 January 1945
  • LST-750 earned one battle star for World War II service
    Specifications: (as reported by Office of Naval Intelligence-1945)
    Displacement 1,625 t.(lt), 4,080 t.(fl) (sea-going draft w/1675 ton load)
    Length 328' o.a.
    Beam 50'
    Draft
    (light) - 2' 4" fwd, 7' 6" aft
    (sea-going) 8' 3" fwd, 14' 1" aft
    (landing) 3' 11" fwd, 9' 10" aft (landing w/500 ton load)
    Speed 12 kts. (maximum)
    Endurance 24,000 miles @ 9kts. while displacing 3960 tons
    Complement
    7 officers, 104 enlisted
    Troop Accommodations
    16 officers, 147 enlisted
    Boats 2 LCVP
    Cargo Capacity (varied with mission - payloads between 1600 and 1900 tons)
    Typical loads
    One Landing Craft Tank (LCT), tanks, wheeled and tracked vehicles, artillery, construction equipment and military supplies. A ramp or elevator forward allowed vehicles access to tank deck from main deck
    Additional capacity included sectional pontoons carried on each side of vessel amidships, to either build Rhino Barges or use as causeways. Married to the bow ramp, the causeways would enabled payloads to be delivered ashore from deeper water or where a beachhead would not allow the vessel to be grounded forward after ballasting
    Armament (varied with availability when each vessel was outfitted. Retro-fitting was accomplished throughout WWII. The ultimate armament design for United States vessels was
    2 - Twin 40MM gun mounts w/Mk. 51 directors
    4 - Single 40MM gun mounts
    12 single 20MM gun mounts
    Propulsion two General Motors 12-567, 900hp diesel engines, two shafts, twin rudders
    Click On Image
    For Full Size Image    		 Size Image Description Contributed
    By

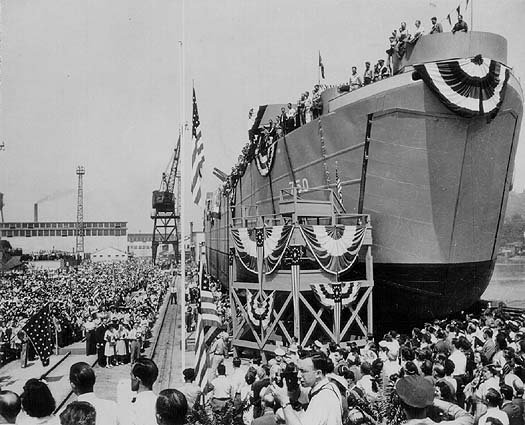

    LST-750 65k LST-750 on launching day, 30 May 1944, at Dravo Corp., Neville Island, Pittsburgh, PA. Joe Radigan MACM USN Ret.
    LST-750 52k LST-750 launching, 30 May 1944, at Dravo Corp., Neville Island, Pittsburgh, PA. Joe Radigan MACM USN Ret.
    View the LST-750
    DANFS history entry located at the US Naval Historical Center web site
