NavSource Online: Army Ship Photo Archive

USACE Dredge Jadwin


International Radio Call Sign:
Alpha - Echo - Delta - Lima
 AEDL
Self Propelled Dustpan Dredge:
  • Built in 1933-34 by Marietta Manufacturing Corp., Point Pleasant W.V.
  • Launched in 1934
  • Delivered and commissioned USACE Dredge Jadwin in 1934
  • Assigned to the US Army Corps of Engineers Vicksburg District
  • Active
    Specifications:
    Displacement 2,300 t.
    Length 274'
    Beam 53'
    Depth of Hold 9' 9"
    Draft 7' 5"
    Speed unknown
    Complement 51
    Range unknown
    Dredging Depth unknown
    Width of cut unknown
    Original Machinery, Equipment
    Dredge pumps unknown
    Discharge Pipe unknown
    Suction pipe diameter 38"
    Discharge pipe diameter 32"
    Pressure unknown
    Average Suction Vacuum unknown
    Pumping Power unknown
    Propulsion system - one reciprocating steam engine
    sternwheel
    New Machinery, Equipment, and Special Features
    Main Generators 3 ea 1675 KW 2550 HP
    Propulsion Motors 2 ea. 1200 hp
    Propulsion Reduction Gears 4.5 to 1
    Fuel Capacity 45,000 gals
    Potable Water 10,000 gals
    In-Port Generator 600 amp 12 92V Detroit
    Motor Generator Set Reliance 98%
    Steering: Electric over HYD Skipper
    Dredge Pump Motors 2 Ea 1200 HP
    Dredge Pump Reduction Gear 3.865 to 1
    Dredge Pump Impeller 12’
    Propellers 84” four blade Rolls Royce
    Stern Section Frames 0-30 replaced with Towboat style stern and Kort Nozzles
    New dredge ladder and lifting frame installed to increase dredging depth to 70 feet
    Click On Image
    For Full Size Image    		Size Image Description Source
    Jadwin
    30269505    		 12k
    Namesake
    Edgar Jadwin C.E. (August 7, 1865 – March 2, 1931) was a U.S. Army officer who fought in the Spanish–American War and World War I, before serving as Chief of Engineers from 1926 to 1929. From 1922 to 1924, Jadwin headed the Corps' Charleston District and Southeast Division. He then served two years as Assistant Chief of Engineers. As Chief of Engineers he sponsored the plan for Mississippi River flood control that was adopted by the United States Congress in May 1928. Jadwin retired as a lieutenant general on August 7, 1929. Wikipedia)    		 Tommy Trampp
    Jadwin
    30269503    		 88k USACE Dredge Jadwin (As Built) conducting dredging operations, 11 February 1938, location unknown
    U.S. Army Corp of Engineers Memphis District Photo No. 8557    		 U.S. Army Corp of Engineers Digitial Library
    Jadwin
    30269504    		 146k USACE Dredge Jadwin conducting dredging operations, date and location unknown
    ©University of Missouri St.Louis - Golden Eagle River Museum
    Jadwin

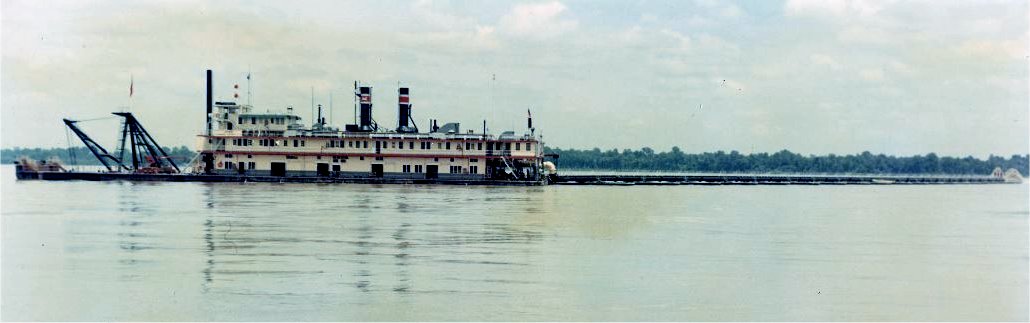

    30269511    		 51k USACE Dredge Jadwin after her hull was extended 30 feet to an overall length of 274 feet. This extension was necessary to to accommodate the 76-foot latter (old latter was 55"). The new ladder increased the maximum dredging depth from 38' to 55'. The anchor booms on the head of the dredge have also been removed. U.S. Army Corp of Engineers Digitial Library
    Jadwin
    30269512    		 51k
    Jadwin
    30269513    		 70k USACE Dredge Jadwin dredging in 1966, location unknown. U.S. Army Corp of Engineers Digitial Library
    Jadwin
    30269508
    30210503-A-VG636-0006    		 107k USACE Dredge Jadwin, with a crew of around 50 U.S. Army Corps of Engineers (USACE) Vicksburg District team members, departing from the Vicksburg Harbor, 3 May 2021 for its annual season of dredging along the Mississippi River and its tributaries.
    US Army Corps of Engineers Vicksburg District photo #'s 30210503-A-VG636-0006, 30210503-A-VG636-0011 and 30210503-A-VG636-0003 by Sabrina Dalton     		Tommy Trampp
    Jadwin
    30269509
    30210503-A-VG636-0011    		 322k
    Jadwin
    30269510
    30210503-A-VG636-0003    		 129k
    Jadwin
    30269501    		 165k USACE Dredge Jadwin conducting dredging operations, date and location unknown
    US Army Corps of Engineers photo
    Jadwin
    30269502    		 64k USACE Dredge Jadwin conducting dredging operations, date and location unknown
    US Army Corps of Engineers photo
    Jadwin
    30269506
    211118-A-VG636-0001    		 66k U.S. Army Corps of Engineers Vicksburg District welcomed home the USACE Dredge Jadwin and crew 18 November 2021, to the Vicksburg Harbor just in time for the holidays.
    US Army Corps of Engineers Vicksburg District photo # 211118-A-VG636-0001 and Vicksburg unnumbered    		 Rommy Trampp
    Jadwin
    30269507    		 114k
    There is no history available for USACE Jadwin at NavSource
    Additional Resources and Web Sites of Interest
    War Department, Corps of Engineers, Mississippi River Commission, Model Study of Suction Head Dredge Jadwin
