NavSource Online: Army Ship Photo Archive

USACE M/V Quincy
ex
 USACE M/V Gordon M. Stevens (2008- 2021)

Towboat:
  • Built in 2007-08, as MV Gordon M. Stevens at Orange Shipbuilding, Orange, TX.
  • Launched in 2008
  • Delivered to the US Army Corps of Engineers, May 2008
  • Christened and placed in service May 2008 as USACE MV Gordon M. Stevens
  • Assigned to the US Army Corps of Engineers Louisville, KY. District
  • Transferred. April 2021 to the US Army Corps of Engineers Rock Island IL. District
  • Christened and placed in service as USAV M/V Quincy, at Quincy IL., 30 April 2021
  • Current Disposition, active in commission
    Specifications:
    Displacement 571 t.
    Length 124'
    Beam 33'10"
    Depth of Hold 10'3"
    Draft 8'
    Speed 12 kts
    Crew 9
    Capacities
    Fuel Oil - 36,000 gal.
    Lube Oil - 800 gal.
    Potable Water - 10,400 gals.
    Electronics - unknown
    Main Engines - two CAT 3512B diesel engines, 1500 hp ea @ 1,200 RPM
    Propellers - two 5-blade, 80" diameter, (Kort Nozzles)
    Generator set - two John Deere 6081AFM, 150KW 480V
    Deck Machinery
    Deck Winches - two Patterson 60 ton single drum electric
    Capstan - Schoellhorn-Albrecht (electric)
    Click On Image
    For Full Size Image    		Size Image Description Source
    Gordon M Stevens

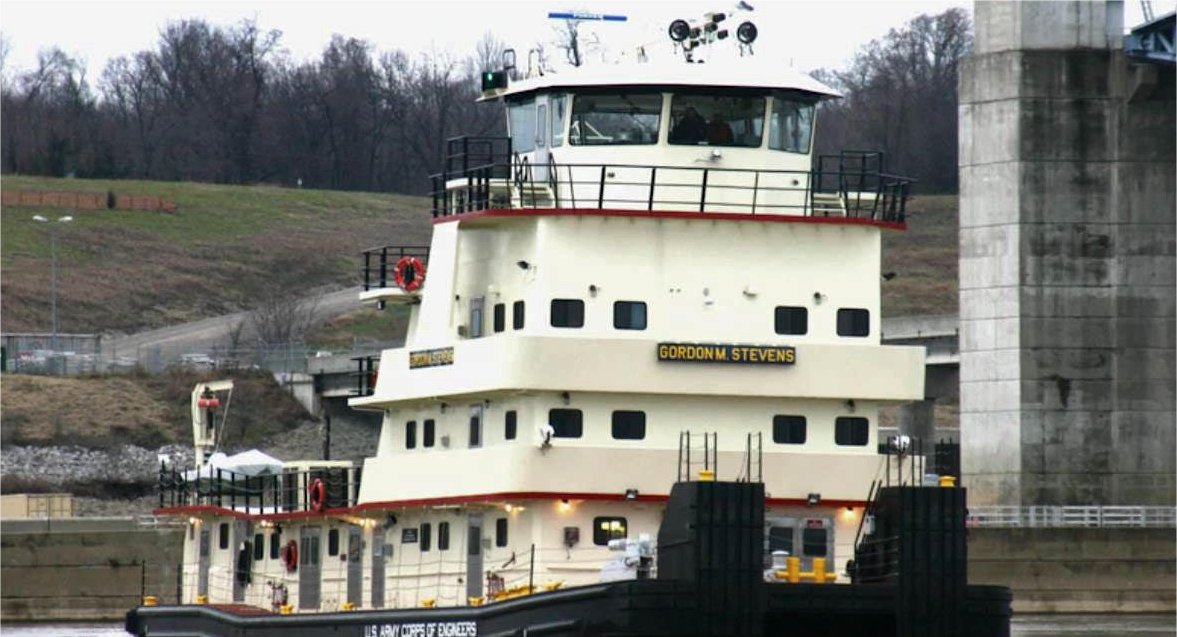

    303002801    		 136k USACE MV Gordon M. Stevens underway date and location unknown
    US Army Corps of Engineers photo    		 John Spivey
    Quincy
    303002802    		 149k USACE M/V Quincy built in 2008, joins five other vessels in the Mississippi River Structures Maintenance fleet located at the Mississippi River Project Office in Pleasant Valley, Iowa. Its function is to serve as the primary towing vessel for the fleet’s new Quad Cities Crane barge.
    US Army Corps of Engineers Rock Island District photo # 210421-A-VX113-001     		Tommy Trampp
    Quad Cities
    3028700004    		 70k USACE Towboat Quincy and USACE Quad Cities at the River Heritage Park, Davenport, Iowa, Thursday, 13 May 2021
    U.S. Army Corp of Engineers Rock Island District photo    		 Tommy Trampp
    There is no history available for USACE MV Gordon M. Stevens / Quincy at NavSource
