Click On Image For Full Size Image	Size	Image Description	Image Copyright
	63k	From the bow looking aft. High Resolution Image 430k	© D. N. Dunham Navsource Naval History 2002

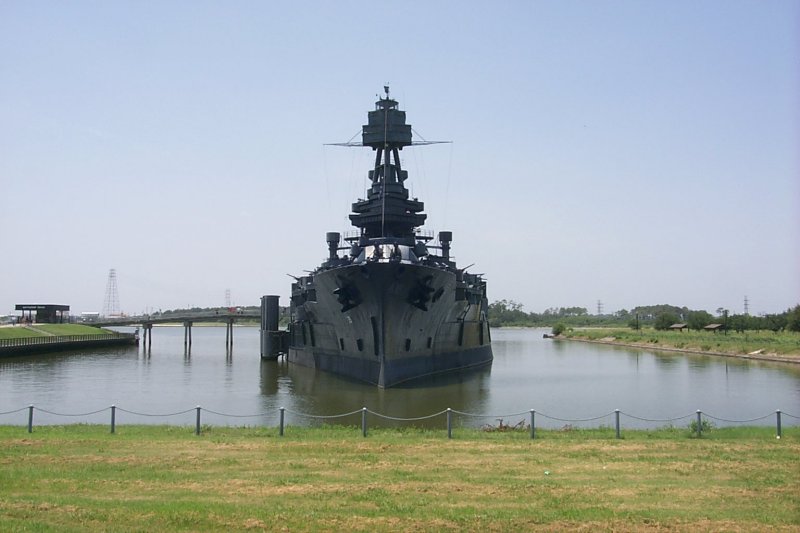

	57k	Bows on view from the head of her slip. High Resolution Image 191k	© P. R. Yarnall Navsource Naval History 2002

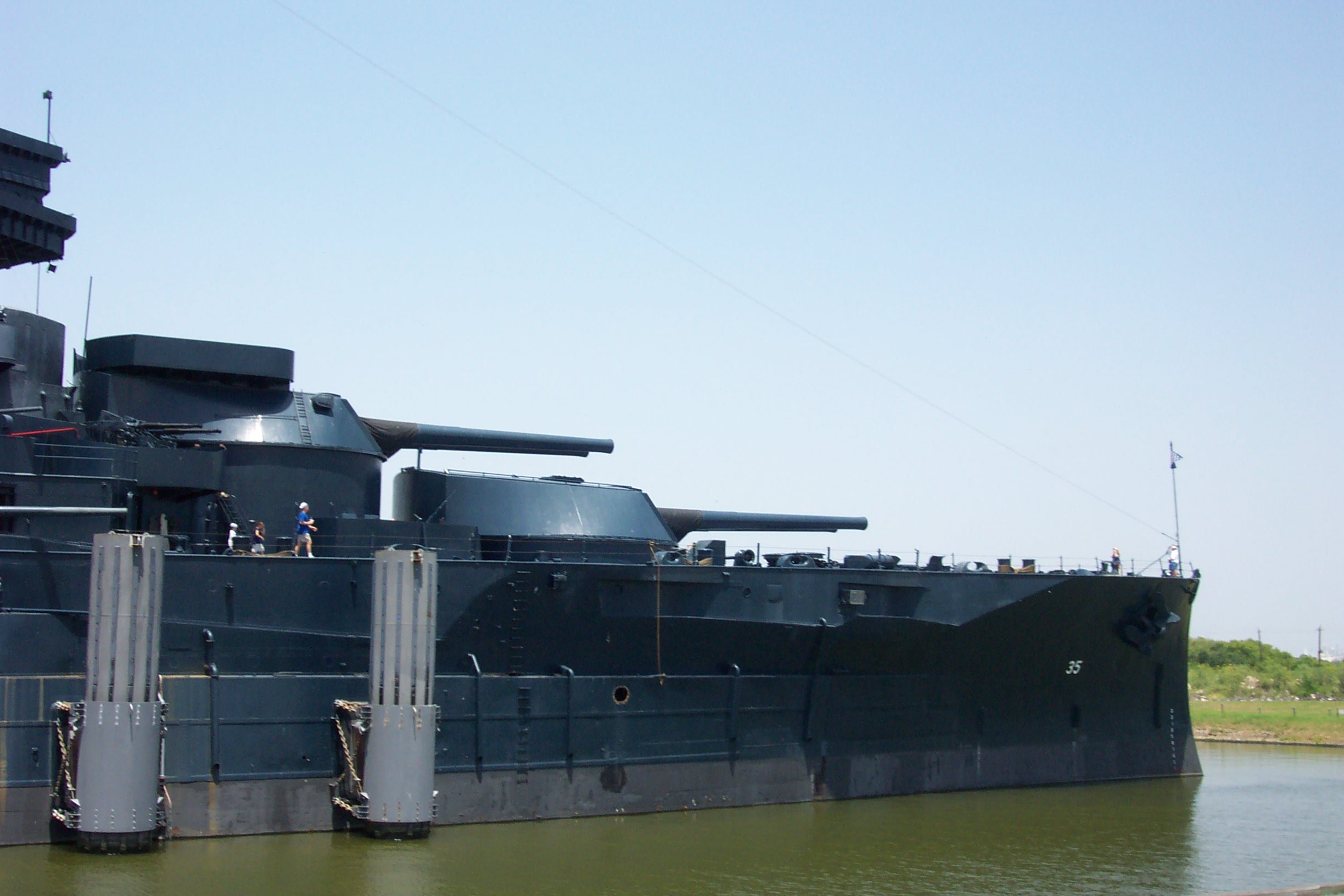

	48k	Good view of her beam, Also showing her mooring system that allows her to ride the tide. High Resolution Image 369k	© D. N. Dunham Navsource Naval History 2002
	45k	From the right side of the slip looking forward. Note the plated over gun ports near the bow that once housed 2 - 5" guns of original secondary armament. Also seen here is a good view of her mooring system. High Resolution Image 332k	© D. N. Dunham Navsource Naval History 2002
	56k	From the right side of the slip looking at the conning tower and cage mast. Note the 3 5"/51 guns of her secondary battery, 3", 40mm and 20mm antiaircraft guns. High Resolution Image 176k	© P. R. Yarnall Navsource Naval History 2002
	56k	From the right side of the slip looking aft, the 3 rear 14" main battery mounts, aft mast, gangway and mooring system. High Resolution Image 407k	© D. N. Dunham Navsource Naval History 2002
	53k	From the gangway looking aft, the 2 rear 14" main battery mounts, 20mm amd 40mm AA Mounts. Note the plated over gun ports near the stern that once housed 2 - 5" guns of original secondary armament. High Resolution Image 163k	© P. R. Yarnall Navsource Naval History 2002
	69k	From the face of the number 1 14" mount looking forward, The San Jacinto Momument appears to be targeted. High Resolution Image 505k	© D. N. Dunham Navsource Naval History 2002
	98k	Inside the #1 14" mount, 4 powder bags are ready to be placed into the starboard 14" gun. High Resolution Image 707k	© D. N. Dunham Navsource Naval History 2002
	76k	Quad 40mm Anti Aircraft gun on the port side of the #2 14" Mount. Note the splinter shield is only 1/4" thick. High Resolution Image 249k	© P. R. Yarnall Navsource Naval History 2002
