NavSource Online: Service Ship Photo Archive


Awards, Citations and Campaign Ribbons

Precedence of awards is from top to bottom, left to right
Top Row - American Campaign Medal - Asiatic-Pacific Campaign Medal - World War II Victory Medal
Bottom Row - National Defense Service Medal - Vietnam Service Medal - Republic of Vietnam Campaign Medal

AFDL-1 Class Small Auxiliary Floating Dry Dock:
  • Laid down by George D. Auchter Co., Jacksonville, FL.
  • Commissioned AFD-21, date unknown
  • Redesignated AFDL-21, 1 August 1946
  • Decommissioned, date unknown
  • Placed in service at Ship Repair Facility Guam, date unknown
  • Placed out of service, date unknown
  • Struck from the Naval Register, 31 March 1989
  • Disposed of by transfer to other government agencies
  • Current Disposition, in commercial service at SUBICDOCK Corp. Philippines
    Displacement 800 t.
    Length 200'
    Beam 64'
    Inside width 45'
    Draft 3' 3" (lt), 31' 4" (flooded)
    Lifting capacity 1,900 tons
    Click On Image
    For Full Size Image
    Size Image Description Contributed
    AFDL-21 115k AFDL-21 dry docked in an unidentified dry dock.
    US Navy photo from "All Hands" magazine August 1964
    Joe Radigan MACM USN Ret.

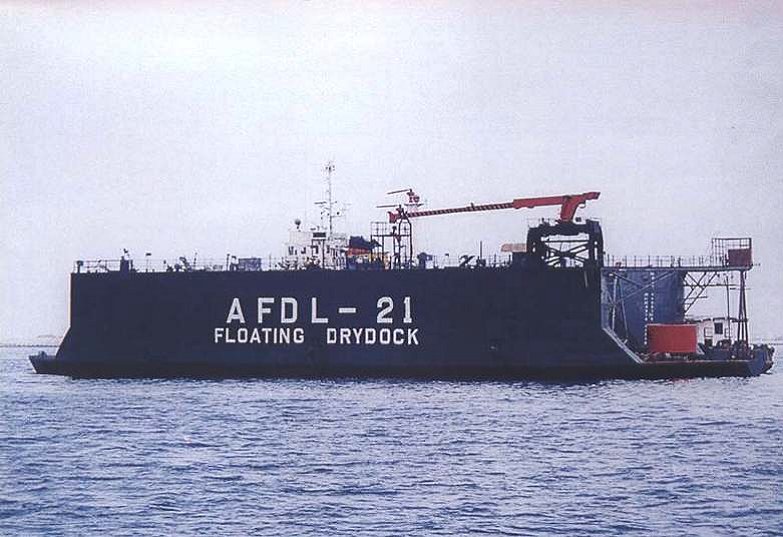

    AFDL-21 80k AFDL-21 at Ship Repair Facility Guam. Gary W. Rogers AFDL-21 1966-67
    Manhattan 56k Manhattan (YTB-779) in the dock of AFDL-21 after bending a wheel on a breakwater in South Vietnam, date unknown.
    Photo contributed by Fred Reep to the National Association of Fleet Tug Sailors.
    Robert Hurst
    Commercial Service
    AFDL-21 87k Ex-AFDL-21 at SUBICDOCK, Subic Bay, Philippines, 2010 Bob Gregory Dep Requirements & Special Programs Officer COMPACFLT N43
    AFDL-21 50k Ex-AFDL-21 at PACDIM (Pacific Dock Integrated Maintenance Facility) ship maintenance facility, Apra Harbor Guam, 2012. PACDIM is a ship repair subsidiary of Cabras Marine Corporation. Bob Gregory Dep Requirements & Special Programs Officer COMPACFLT N43
    YRB-36 513k YRB-36 drydocked in ex-AFDL-21 at Cabras Marine, PACDIM facility, Guam. 26 September 2013. Bob Gregory, Dep Requirements & Special Programs Officer, COMPACFLT N43
    YRB-36 380k
    YRB-36 194k

    There is no DANFS history available for AFD-21 / AFDL-21 at NavSource
    Commanding Officers
    01CDR. Armbrust, Carl Raymond, USN1950 - July 1951
    02CAPT. Palmer, Charles J., USN :RADMJuly 1951 - 1953
    Courtesy Wolfgang Hechler and Ron Reeves
