SBX-1

International Radio Call Sign:
Alpha - Alpha - Mike - Delta
AAMD
Sea Based X-Band Radar Platform:
  • SBX-1 consists of radar mounted on CS-50 twin-hulled semi-submersible drilling rig
  • Platform converted in 2002 at AmFELS, Brownsville, TX.
  • Radar mounted at the Kiewit yard in Ingleside, TX.
  • Radar range: 1,242 miles
  • First deployed in 2006
  • Homebased at Adak, Alaska although she has never put into port at Adak
  • SBX-1 is part of the Ground-Based Midcourse Defense (GMD) system being deployed by the Missile Defense Agency (MDA)
  • The platform is designed to roam the Oceans under her own power on alert to detect incoming ballistic missiles
    Specifications:
    Displacement 50,000 long tons (when ballasted)
    Length 389'
    Beam 238'
    Draft 33' (transit)
    Complement
    CIVMAR 33
    Sponsors and Civil Service 54
    Speed unknown
    Range unknown
    Power Plant
    six 12-cylinder Caterpillar diesels 3.6 megawatt generators
    Click On Image
    For Full Size Image
    Size Image Description Source

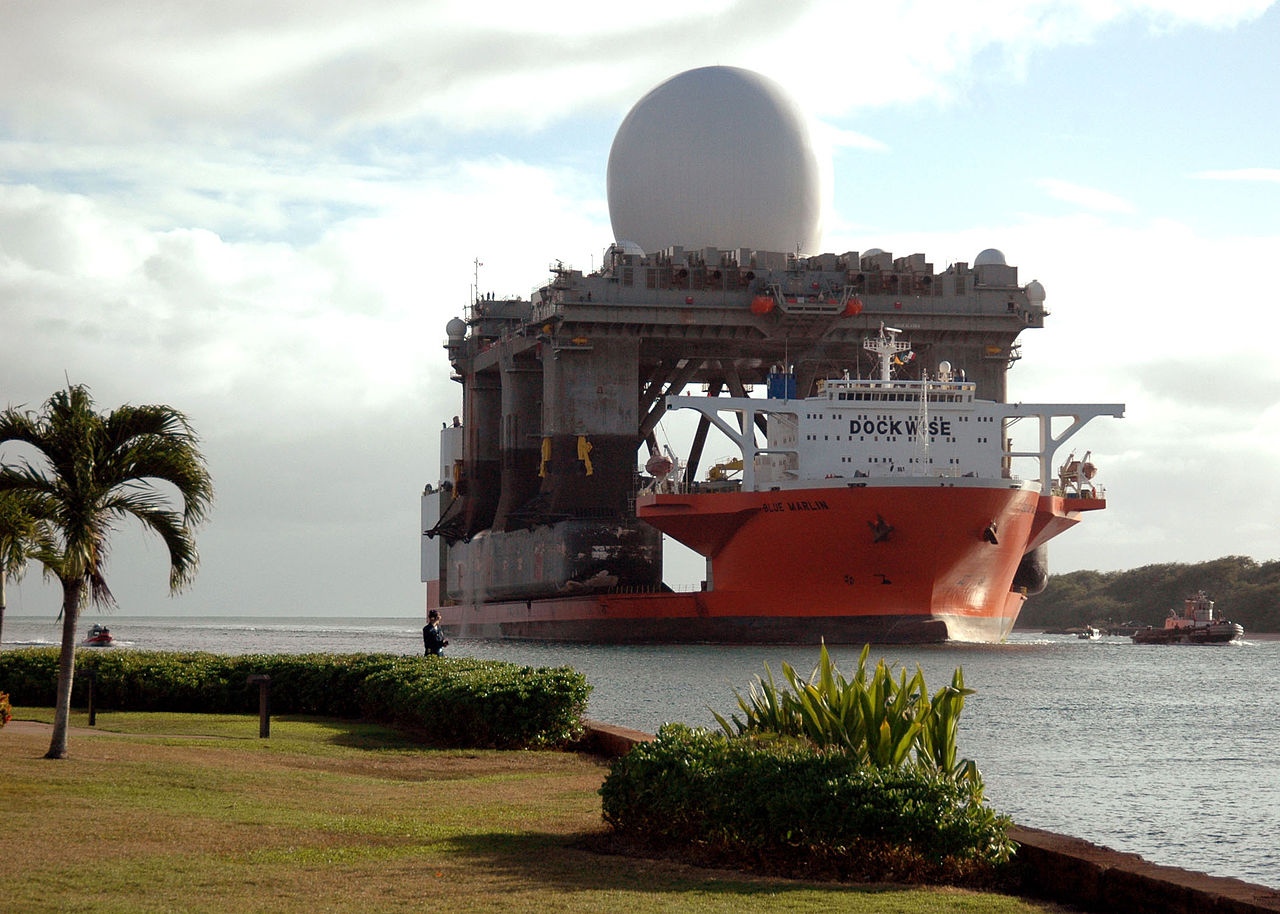

    SBX-1 92k SBX-1 being carried by the heavy lift vessel Blue Marlin, entering Pearl Harbor, HI., 9 January 2006. Blue Marlin transported SBX-1 from her builders yard at Corpus Christi, TX. to Pearl Harbor where the platform was placed in service.

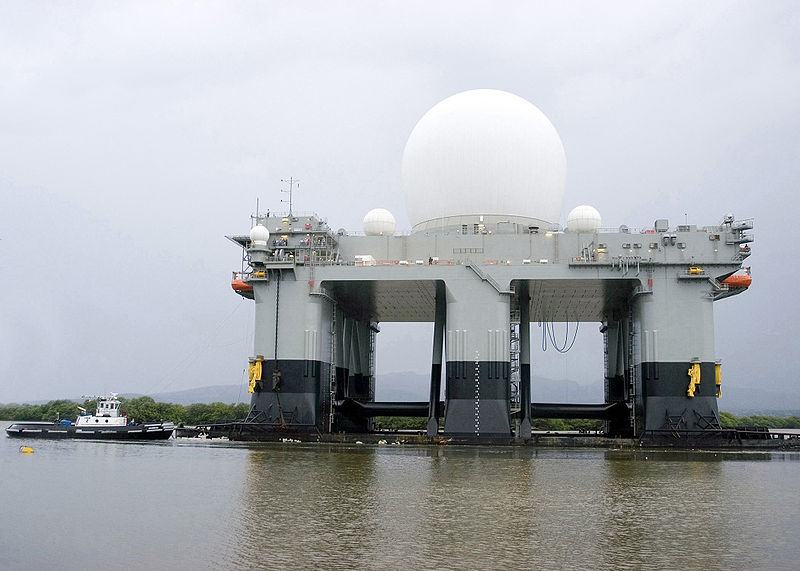

    SBX-1 208k The heavy lift vessel MV Blue Marlin sits moored in Pearl Harbor, Hawaii, with the Sea Based X-Band Radar SBX-1 aboard after completing a 15,000-mile journey from Corpus Christi, Texas. SBX-1 is a combination of the world's largest phased array X-band radar carried aboard a mobile, ocean-going semi-submersible oil platform. It will provide the nation with highly advanced ballistic missile detection and will be able to discriminate a hostile warhead from decoys and countermeasures. SBX-1 will undergo minor modifications, post-transit maintenance and routine inspections in Pearl Harbor before completing its voyage to its homeport of Adak, Alaska in the Aleutian Islands.
    US Navy photo # 060110-N-3019M-001 Pearl Harbor, Hawaii (Jan. 10, 2006) by MC2 Ryan C. McGinley
    Tommy Trampp
    SBX-1 72k SBX-1 at Pearl Harbor after being offloaded from the heavy lift vessel Blue Marlin in January 2006. US Department of Defense
    SBX-1 71k
    SBX-1 55k SBX-1 underway, date and location unknown. US Missile Defense Agency
    SBX-1 698k SBX-1 under tow at Seattle, WA. date unknown.
    SBX-1 65k SBX-1 under tow 13 April 2016. SBX-1 was being moved closer to North Korea. The platforms powerful and mobile radar is part of the U.S. ballistic missile defense network. Itís designed to detect and track long-range ballistic missiles in midcourse.
    DOD photos.
    Tommy Trampp
    SBX-1 127k

    SBX-1
