NavSource Online: Amphibious Photo Archive
Contributed by Mike Smolinski

BAPM-7 / LSD-15 / HMS Tomahawk / HMS Waterway (F-146)
LSD-15 Shadwell

Awards, Citations and Campaign Ribbons



Precedence of awards is from top to bottom, left to right
Top Row - Combat Action Ribbon (retroactive, 24 June 1945) - Navy Expeditionary Medal (1-Cuba) - American Campaign Medal
Second Row - Asiatic-Pacific Campaign Medal (1) - World War II Victory Medal - Navy Occupation Service Medal (with Asia clasp)
Third Row - National Defense Service Medal - Armed Forces Expeditionary Medal (1-Cuba, 1 Dominican Republic) - Philippine Liberation Medal (1)
Casa Grande Class Dock Landing Ship:
  • Authorized under the Lend-Lease Act as British Mechanized Artillery Transport Tomahawk (BAPM-7)
  • Reclassified Landing Ship Dock LSD-15, 1 July 1942
  • Contract awarded for LSD-15 to Newport News Shipbuilding and Dry Dock Co., Newport News, VA., 10 September 1942
  • Assigned the name HMS Tomahawk (date unknown)
  • Renamed by the United Kingdom HMS Waterway (F-146)
  • Lend-Lease canceled or modified never commissioned in Royal Navy
  • Laid down as Shadwell 17 January 1944
  • Launched 14 May 1944
  • Commissioned USS Shadwell (LSD-15), 24 July 1944
  • Decommissioned, 10 July 1947, at Orange, TX.
  • Laid up in the Atlantic Reserve Fleet Texas Group, Orange
  • Recommissioned, 20 September 1950, at Orange, TX.
  • Decommissioned, 9 March 1970, at US Naval Amphibious Base, Little Creek, VA.
  • Laid up in the National Defense Reserve Fleet, James River, Fort Eustis, VA.
  • Struck from the Naval Register, 1 November 1976
  • Final Disposition, to be disposed of as a target or by test, Custodian, Fire Research Det. Little Sands Island Mobile Bay, Mobile AL.
  • Shadwell earned one battle star for World War II service
    Specifications: (as reported by Office of Naval Intelligence, 7 April 1944)
    Displacement 4,032 (light draft), 7,930 (seagoing - loaded)
    Length 457' 9" o.a.
    Beam 72"
    Draft 8' 2 ½" fwd, 10' ½" aft (light draft); 15' 5 ½" fwd, 16' 2" aft (seagoing loaded)
    Speed 17 knots maximum (design speed)
    Endurance 8,000 miles @ 15 knots
    Crew Complement 17 officers, 237 men; Landing Craft: 6 officers, 30 men
    Troop Complement 22 officers, 218 men
    Landing Craft 6 officers, 30 men
    Speed 17 knots maximum (design speed)
    Endurance 8,000 miles @ 15 knots
    Crew Complement 17 officers, 237 men; Landing Craft: 6 officers, 30 men
    Troop Complement 22 officers, 218 men
    Well Deck Capacity (without prefabricated "Super-Decks" installed)
  • 3 LCT (Mk V or VI) each w/ 5 medium tanks or
  • 2 LCT (Mk III or IV) each w/ 12 medium tanks or
  • 14 LCM (Mk III) each w/ 1 medium tank or 1, 500 long tons cargo or
  • 47 DUKW or
  • 41 LVT or
  • Any combination of landing vehicles and landing craft up to capacity
    Well Deck Capacity (with prefabricated "Super-Decks" installed)
  • 108 DUKWs or
  • 92 LVTs or
  • Any combination of tracked/wheeled vehicles up to capacity
    (Note: LSDs were incapable of repairing landing craft in this configuration)
    Aircraft LSDs 1 - 27 (still in commission in late 40's or early 50's) were fitted/retro-fitted with a prefabricated steel grated "Portable Deck" suspended between the wing walls and supported by removable I-beam girders. The aft end of the portable deck contained a wooden helicopter platform, enabling the ship to land and launch 1 helicopter at a time. Stowage of helicopters was limited to capacity of the portable deck installed for the mission. Aircraft servicing was limited to re-fueling. With portable deck and aircraft platform installed, the Landing ship, dock was still capable of transporting, launching and repairing smaller amphibious craft and vehicles up to the size of a Landing craft, utility (LCU) in their well decks
    Armament
  • 1 - 5"/.38 caliber Dual Purpose single barrel mount in open tub (w/director)
  • 2 - 40MM quad barrel Anti-Aircraft mounts (w/directors)
  • 2 - 40MM twin barrel Anti-Aircraft mounts (w/directors)
  • 16- 20MM single barrel Anti-Aircraft mounts (local control)
    Propulsion
  • 2 - Babcock and Wilcox Boilers, D Type, 2 Drum, Single Furnace, Single Uptake,
    Oil Fired
  • 2 - Skinner Engines - steam turbine (geared)
  • Twin screws
    Click On Image
    For Full Size Image    		 Size Image Description Contributed
    By
    Shadwell 26k Shadwell (LSD-15) underway, date and place unknown. .
    Shadwell 71k Shadwell (LSD-15) underway, date and place unknown. .
    Shadwell 101k Shadwell (LSD-15) underway, date and place unknown. .

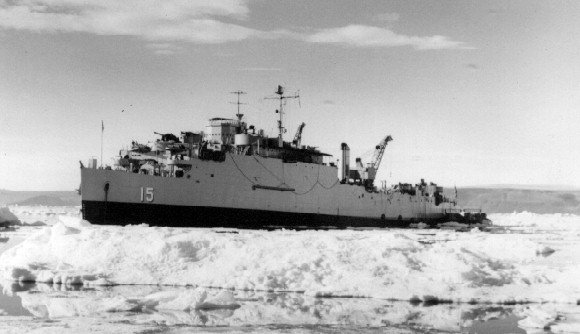

    Shadwell 50k Shadwell (LSD-15) in the Arctic ice, date and place unknown. .
    View the Shadwell (LSD-15)
    DANFS history entry located at the US Naval Historical Center web site
