NavSource Online: Amphibious Photo Archive

APM-6 / LSD-6 / LSD-6(A) Lindenwald


Contributed by Walt Kuecks
Awards, Citations and Campaign Ribbons



Precedence of awards is from top to bottom, left to right
Top Row - Combat Action Ribbon (retroactive) - Navy Unit Commendation - Navy Expeditionary Medal (1-Cuba)
Second Row - American Campaign Medal - Asiatic-Pacific Campaign Medal (3) - World War II Victory Medal
Third Row - National Defense Service Medal - Armed Forces Expeditionary Medal (1-Cuba, 1-Dominican Republic) - Philippines Liberation Medal (2)
Ashland Class Dock Landing Ship:
  • Originally authorized as (APM-6), a Mechanized Artillery Transport
  • Reclassified Landing Ship Dock (LSD-6), 1 July 1941
  • Laid down, 22 February 1943, at Moore Drydock Co. Oakland, CA.
  • Launched, 11 June 1943
  • Commissioned USS Lindenwald (LSD-6), 9 December 1943
  • Decommissioned, 5 April 1947, at San Francisco, CA.
  • Laid up in the Pacific Reserve Fleet, San Francisco Group
  • Converted for Arctic Service and recommissioned USS Lindenwald LSD-6(A), 18 February 1949
  • Decommissioned and transferred to operational control of the Military Sea Transportation Service (MSTS), 12 December 1957
  • Placed in service as USNS Lindenwald T-LSD-6(A), 12 December 1957
  • Recommissioned, 1 July 1960
  • Decommissioned, 30 November 1967, at US Naval Amphibious Base Little Creek, VA.
  • Struck from the Naval Register, 1 December 1967
  • Final Disposition, sold for scrapping, 25 September 1968, to Union Minerals and Alloys Corp.
  • Lindenwald received five battle stars for World War II service
    Specifications: (as reported by Office of Naval Intelligence, 7 April 1944)
    Displacement 4,032 (light draft), 7,930 (seagoing - loaded)
    Length 457' 9" o.a.
    Beam 72"
    Draft 8' 2 ½" fwd, 10' ½" aft (light draft); 15' 5 ½" fwd, 16' 2" aft (seagoing loaded)
    Speed 17 knots maximum (design speed)
    Endurance 8,000 miles @ 15 knots
    Crew Complement 17 officers, 237 men; Landing Craft: 6 officers, 30 men
    Troop Complement 22 officers, 218 men
    Well Deck Capacity (varies with mission)
  • 3 LCT (Mk V or VI) each w/ 5 medium tanks or
  • 2 LCT (Mk III or IV) each w/ 12 medium tanks or
  • 14 LCM (Mk III) each w/ 1 medium tank or 1, 500 long tons cargo or
  • 47 DUKW or
  • 41 LVT or
  • Any combination of landing vehicles and landing craft up to capacity
    Armament
  • 1 - 5"/.38 caliber Dual Purpose single barrel mount in open tub (w/director)
  • 2 - 40MM quad barrel Anti-Aircraft mounts (w/directors)
  • 2 - 40MM twin barrel Anti-Aircraft mounts (w/directors)
  • 16- 20MM single barrel Anti-Aircraft mounts (local control)
    Aircraft (still in commission in late 40's or early 50's) were fitted/retro-fitted with a prefabricated steel grated "Portable Deck" suspended between the wing walls and supported by removable I-beam girders. The aft end of the portable deck contained a wooden helicopter platform, enabling the ship to land and launch 1 helicopter at a time. Stowage of helicopters was limited to capacity of the portable deck installed for the mission. Aircraft servicing was limited to re-fueling. With portable deck and aircraft platform installed, the Landing ship, dock was still capable of transporting, launching and repairing smaller amphibious craft and vehicles up to the size of a Landing craft, utility (LCU) in their well decks.
    Propulsion
  • 2 - Babcock and Wilcox Boilers, D Type, 2 Drum, Single Furnace, Single Uptake,
    Oil Fired
  • 2 - Skinner Uni-Flow reciprocating engines
  • Twin screws
    Arctic Conversion SHIPALTS
  • Enclosed Pilot House
  • Moved Flying Bridge up one deck
  • Enclosed 5"/38 Mount, Gun Director and Plotting Shack
  • Peak Tank filled with cement
  • Heating and Ventilation systems modified for cold weather operations
  • One each 24" Westinghouse carbon-arc signal/search light added outboard on Signal Bridge port and starboard
  • Enclosed water-tight bow lookout compartment
    Click On Image
    For Full Size Image    		 Size Image Description Contributed
    By
    Lindenwald 74k Lindenwald (LSD-6) at anchor, date and place unknown. USS LSM /LSMR Association

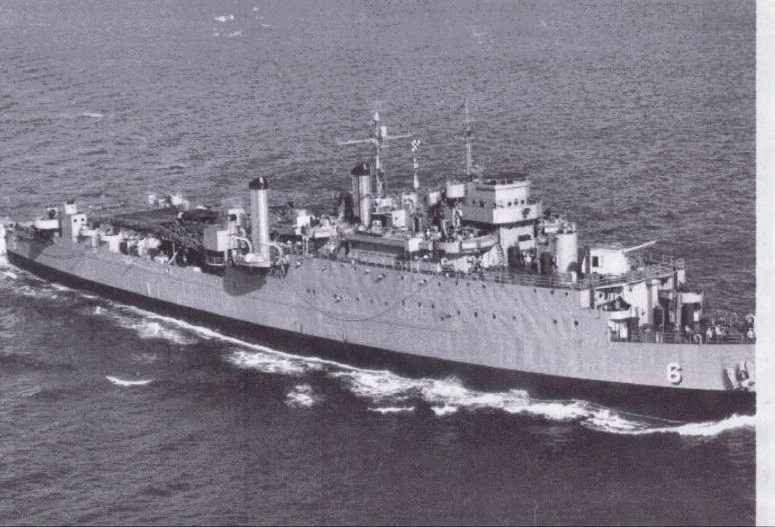

    Lindenwald 115k Lindenwald (LSD-6) underway, date and place unknown.
    US Navy photo    		 Carl R. Friberg Jr.

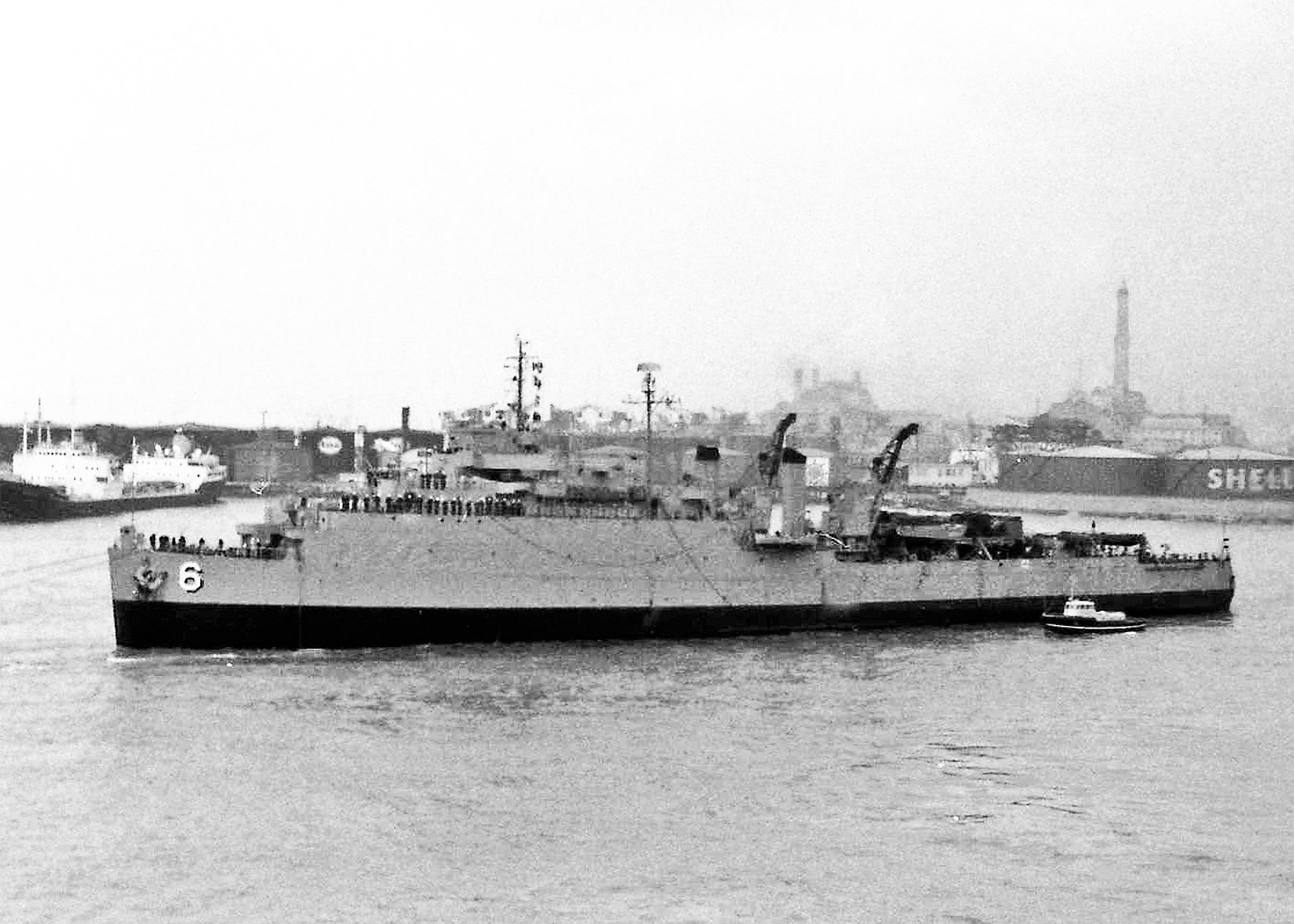

    Lindenwald 99k Lindenwald (LSD-6) entering the harbor at Havana, Cuba, 27 January 1956. Walt Kuecks EN3 USS Lindenwald
    Lindenwald 99k Lindenwald (LSD-6) moored pierside at St. Thomas, Virgin Island, March 1964. Photo by Jay Jones EM3 USN USS Roberts (DE-749)
    Lindenwald 81k Lindenwald (LSD-6) underway, date and place unknown. Donald J. Wagner
    Austin 71k Lindenwald (LSD-6) and Austin (LPD-4) moored pierside, San Juan Puerto Rico, early 1967 Photo by Steve Connelly USS Austin
    View the Lindenwald (LSD-6)
    DANFS history entry located at the US Naval Historical Center web site
